Texas Mile - ADM Performance C6 Corvette - Motec M150, PDM30, C1212
Project Type
Full Wiring Harness Design and Build - Motorsport Grade with Service Document
Date
July 2023
Location
ADM Performance - Lewisville TX
Partnered with ADM Performance and LaughlinMetalDesign, this project ended up being my favorite to date!

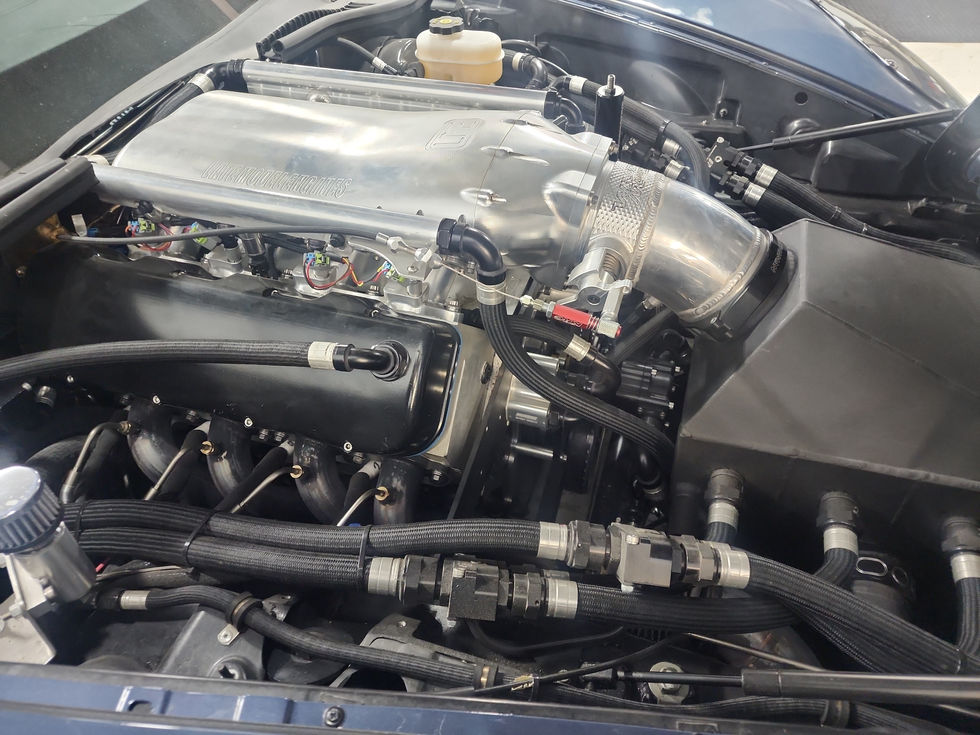

2000+ HP Billet Block, Mechanical Fuel System with a Gas tank in front of the Motor, Dual Intercooler Pumps, Electric Water Pump, Turbosmart E-Gates with Blackbox Controller, Motec M150, PDM30, C1212, and LTCD. This vehicle was also equipped with individual wheel speed sensors, 4 corner ride height sensors with laser level in center of chassis, High Capacitive Coil Packs, Aux Vacuum pump system, and had pretty much every sensor known to man somewhere on the vehicle. We maxed out the M150 of resources and had to go to the dash and almost needed an expander!

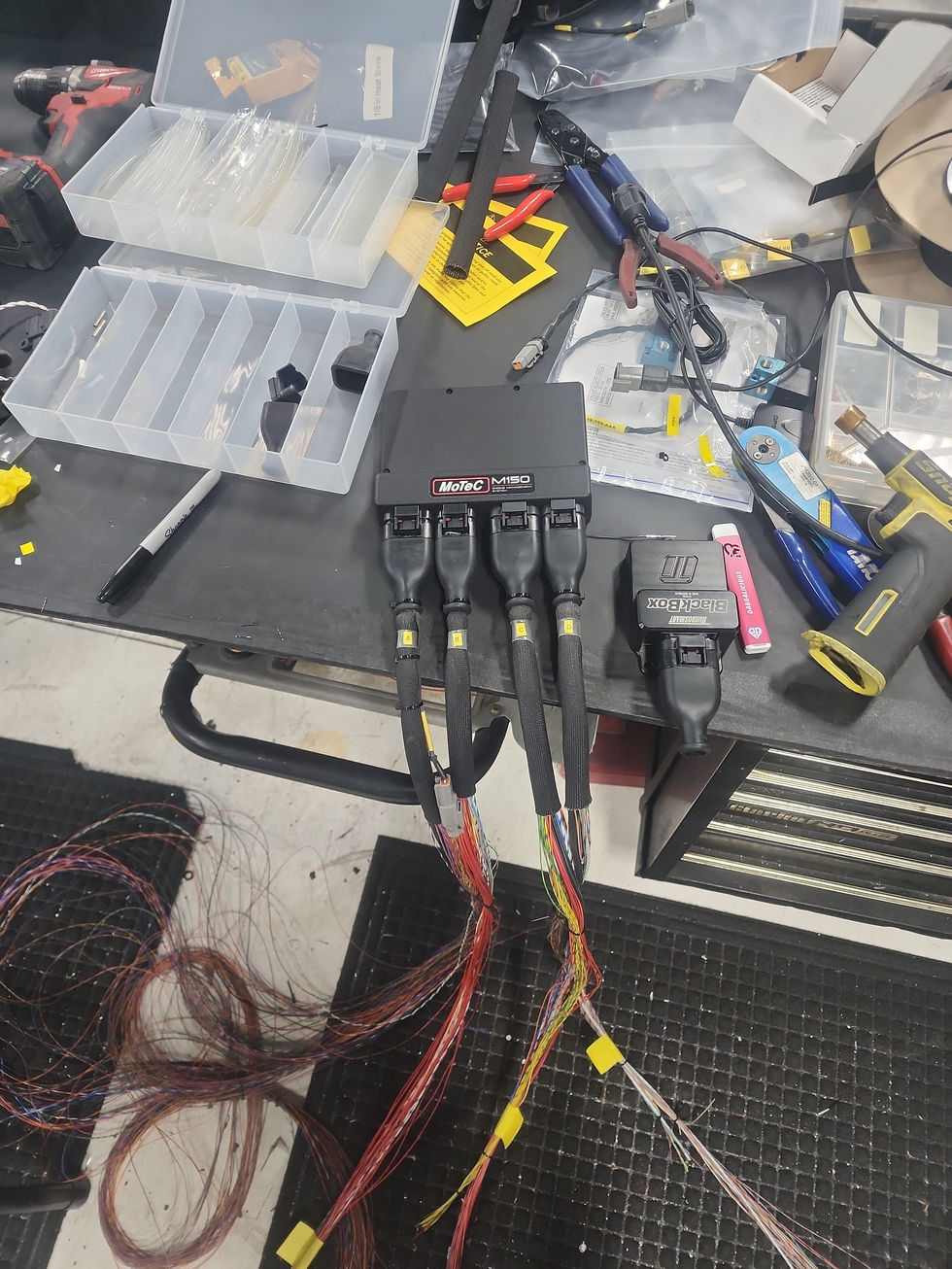

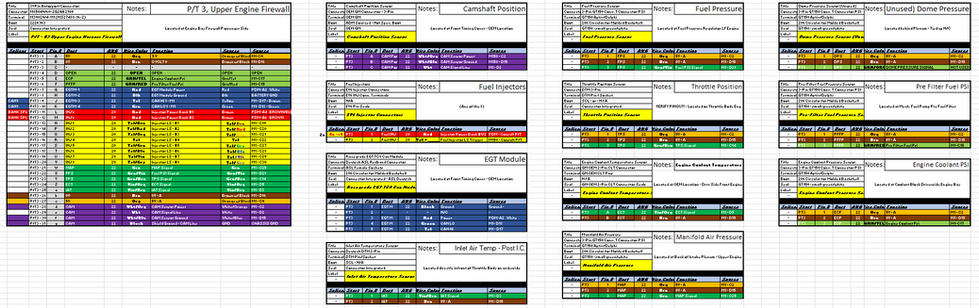

I could talk about this car forever! So much crazy stuff going on! I documented and designed the entire electrical system for this vehicle, and then built everything in house at ADM performance with Mil-grade Autosport Connectors, Tefzel Wire, and High Temp rated Insultherm sheathing. Check out some of my work!
